Large screen temperature and humidity indicator
Large screen temperature and humidity display instrument, large screen display, large screen display…
Description：
Products overview:

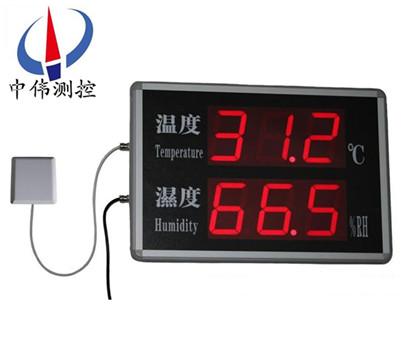

ZW - THD seriesLarge temperature and humidity display screenUsed for cold storage, workshop, clean rooms, workshop, warehouse, library, museum, office, computer room, laboratory measurement and display of environments such as temperature and humidity and the application of differential pressure environment.The whole machine hanging installation;Probe the outer beautiful, clear, visible over a long distance, metope installed.Visible at a distance, with button adjustment function, easy for users to temperature, humidity deviation correction, an ideal alternative to traditional temperature and humidity meter.
Second, large screen display, temperature and use:
1, a single point of environment temperature/humidity/differential pressure measurement and display;
2, multi-channel temperature/humidity/pressure differential concentration measurement, field display and networking collection;
3, compatible with DDC/PLC and other data acquisition system;
Three, the main features:
1, high precision, high stability of the sensor, but the scene 100% swap, no need to calibration;
2, large size, high brightness LED display;
3, a variety of input and output design, suitable for all kinds of application;
4, light shell, beautiful and practical.
Four, the technical parameters:
1, applicable environment: factories, libraries, museums, computer room, laboratory, etc.;
2, general applications: single point or networked measurement and display;
3, power supply: 220 vac + / - 15%;
4, power consumption: < 5 w;
5, display mode: 3 4 "high brightness LED;
6, display resolution: 0.1 ℃, 0.1% RH.
7, according to the range: 0-50.0 ℃, 0-99.9% RH;
8, display precision: < 0.5 ° C, < 3% RH;
9, response time: 30 s temperature, humidity, 4 s;
10, appearance size: 700 * 267 * thickness of 50 mm wide;
11, material: frame is aluminium alloy, matte silver, panel for PC sunshine board, paste PVC membrane;
12, protective: IP54.
13, installation method: hang wall or lifting;
14, button function: three functional button, deviation of temperature, humidity and alarm set or cleared.
Five, the basic configuration:
LED size | Mm x mm case shape | |
iron | aluminum | |
1.8" | 250 * 120 * 100 | 260 x 160 x 60 |
2.3" | 350 * 130 * 100 | 320 x 170 x 60 |
3" | 400 * 180 * 100 | 400 x 190 x 60 |
4" | 530 * 200 * 100 | 520 x 220 x 60 |
5" | 600 * 240 * 100 | 590 x 245 x 60 |
8" | 850 * 315 * 120 | 800 x 300 x 60 |
10" | 900 * 380 * 120 | |
12" | 1200 * 450 * 120 | |
Six, after-sales service commitment:
1, our company sold by weiMeasurement and controlProduct quality problem within 12 months, responsible for free maintenance.
2, the warranty period, any quality problems such as the products of our company, my company is responsible for free repair or replacement.
3, the warranty period, such as user improper use, damaged products, my company is responsible for the maintenance, charge damage parts cost.
4, after the warranty period appear quality problem, my company is responsible for the maintenance, charge damage parts cost.
5, such as user need to my company site services, to users in the province I company service personnel to reach the site within 12 hours, fujian association of foreign languages and user reach the site within 48 hours.
